Paper roll slitting machine Bigger diameter 1.4m/1.6m unwind and rewind, suitable for bigger jumbo roll uploading, and cutting, 1.2 meters big diameter rewind.
The Slitter Rewinding Machine suitable for Jumbo roll material, such as cardboard paper ,Kraft paper,coated paper, single silicon paper etc slitting & rewinding.
|
技术参数 |
Technical parameter |
||
|
母卷最大宽度 |
1600 |
Max width mother roll |
1300mm/1600mm/1800mm |
|
收卷最小宽度 |
30mm |
Min width finished roll |
30mm |
|
放卷最大卷径 |
1200mm |
Max diameter mother roll |
1200mm |
|
收卷最大直径 |
1000mm |
Max diameter finished roll |
1000mm |
|
母卷最大重量 |
1200KG |
Max mother roll weight |
1200KG |
|
分切速度 |
10-400m/min |
Speed of slitting |
10-400/min |
|
分切克重 |
30-350gsm |
Slitting capability |
30-350gsm |
|
卷曲方式 |
中心表面卷曲 |
Rewinding way |
Central&surface |
|
分切精度 |
±0.2mm |
Precision |
±0.2mm |
|
调速控制 |
变频调速 |
Speed regulation control |
Frequency converter |
|
输入电源 |
380V/50HZ三相四线 |
Power input |
380V,50HZ,3PH |
|
机型尺寸 |
4200*3200*1950mm |
Dimension |
4200*3200*1950mm |
|
总重量 |
5600KG |
Total weight |
5600KG |

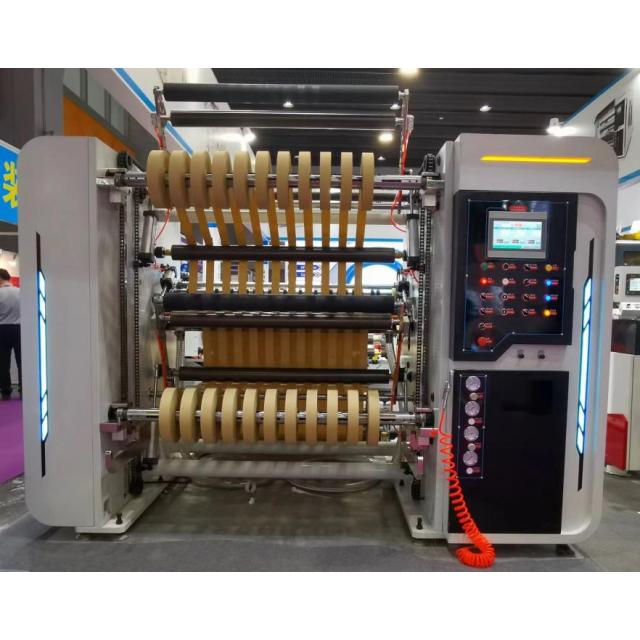

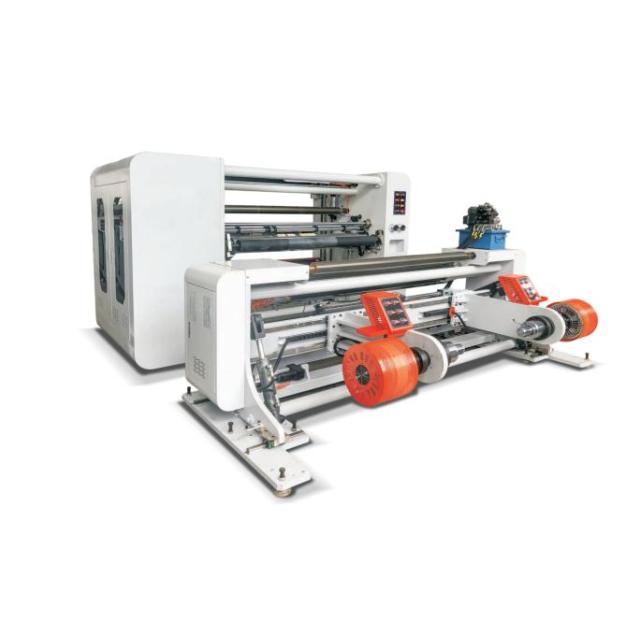

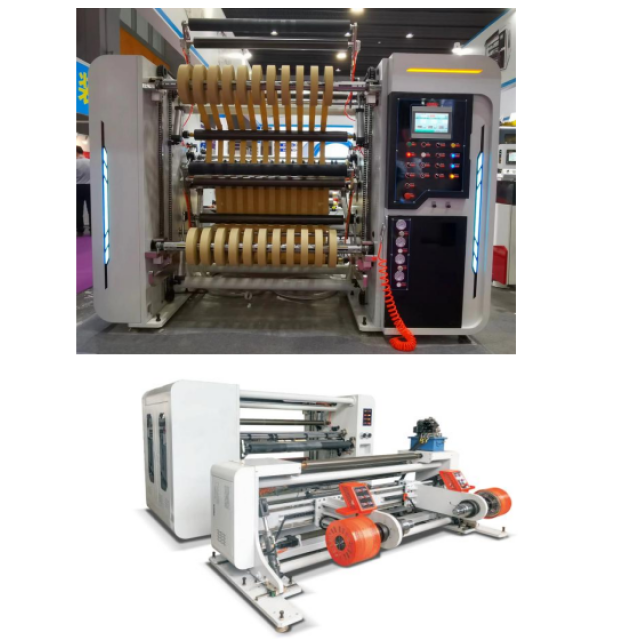

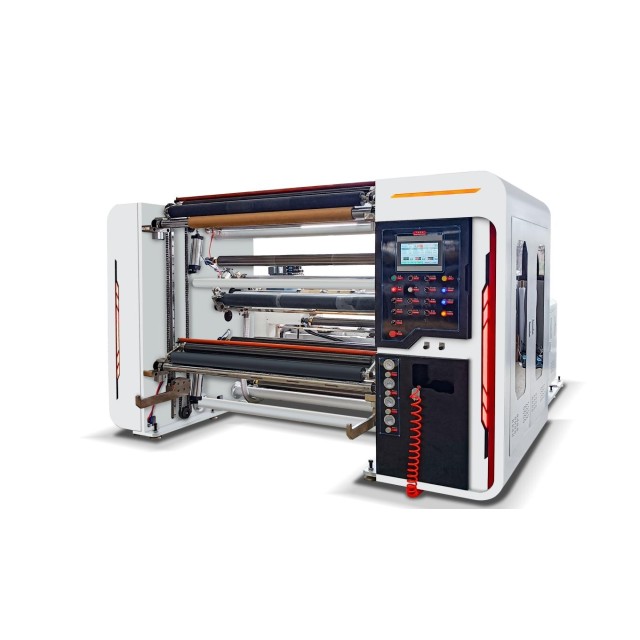

PAPER ROLL SLITTING MACHINE
USE:
The Slitter Rewinding Machine suitable for Jumbo roll material, such as cardboard paper ,Kraft paper,coated paper, single silicon paper etc slitting & rewinding.
Characteristic:
1.PLC controlling system make the machine having an intelligent operation. Machine using three sets servo motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.
2.Machine use frequency converter adjust speed, keep stable running when speed go up.
3.Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.
4.Rewinding shaft use two pcs air shaft structure，finished rewinding rolls automatic unloading device.
5.Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan
6.Web material edge position automatic correct(EPC system)
7.Automatic cylinder shaft mother roll unwinding structure/
hydraulic shaft-less mother roll unwinding structure(optional)
用 途：
该型号分切复卷机包装印刷行业的大型卷筒材料分切复卷（最小收卷宽幅30mm，最大收卷直径1000mm）。材料适用范围，铜版纸，牛皮纸，淋膜纸，单面硅纸等材料。
性能及特点
1、本机采用PLC智能控制，伺服电机收卷，精度高，自动锥度张力控制。中心表面卷曲方式，收卷表面光滑平整，硬度高。
2、本机采用变频调速,保持加速中平稳运转；
3、自动计米、报警停机等功能；
4、收卷采用上下双气胀轴收卷结构，收卷完毕卷材自动卸料装置；
5、圆刀分切，刀具随意手动调节，废边自动排出装置；
6、自动纠偏系统（EPC)；
7、气动式自动有轴/液压式自动无轴放料架结构（客户自行选择配置）。
|
传动系统 |
Drive system |
||
|
主电机 |
1只，丹马伺服电机 |
Main motor |
1set, DM Servo motor |
|
收卷电机 |
2只，丹马伺服电机 |
Rewind motor |
2sets,DM Servo motor |
|
变频器 |
3只, 正弦 |
Frequency changer |
3sets,SINE |
|
送料辊 |
橡胶辊 |
Feeding roller |
Rubber roller |
|
传动辊 |
铝辊 |
Transmit roller |
Aluminum roller |
|
传动方式 |
同步带传动 |
Transmit way |
Synchronous |
|
压紧方式 |
气缸压紧 |
Pressing way |
Cylinder |
|
收卷轴 |
3英寸气胀轴 |
Rewinding shaft |
3inches Pneumatic shaft |
|
轴承 |
人本 |
Bearing |
Humanistic |
|
同步带 |
国产 |
Synchronous belt |
china |
|
分切装置 |
Slitting equipment |
||
|
分切方式 |
圆刀分切 |
Slitting way |
Round Blade knife |
|
圆刀数量 |
15付 |
Blade knife |
15sets |
|
调节方式 |
手动自由调节 |
Adjustment way |
Freely by manual |
|
放卷装置 |
Unwinding equipment |
||
|
放卷结构 |
3/6英无轴液压放卷架 |
Unwinding structure |
3/6inch,hydraulic shaft-less |
|
抬升方式 |
油缸控制 |
Lifting way |
Hydraulic control |
|
导轨范围 |
左右移动75mm |
Guide way |
Right&Left 75mm |
|
控制系统 |
|
Control system |
|
|
PLC |
德国西门子 |
PLC |
Siemens,Germany |
|
触摸屏 |
台湾威纶 |
Touching screen |
TAIWAN |
|
张力控制 |
自动张力控制 |
Tension control |
Full automatic |
|
放卷张力 |
磁粉 |
unwind tension control |
Magnetic powder |
|
纠偏精度 |
±0.2mm |
EPC precision |
±0.2mm |
|
纠偏感应器 |
超声波传感器 |
EPC sensor |
Ultrasonic sensor |
|
卸料方式 |
自动卸料 |
Unloading Type |
Automatic unloading by chain |
|
计米 |
全自动 |
Count meter |
Full automatic |
|
余料停机 |
自行设定 |
Automatic stop |
Setting in PLC touch screen |
